Quectel UG96-TE-A

شناسه محصول: Quectel-UG96-TE-A دسته: برچسب: , , , , , , , ,

684,286 تومان

50 در انبار

مقایسه

توضیحات محصول

Quectel UG96-TE-A is a Penta-band UMTS/HSPA module offering a maximum data rate of 7.2Mbps downlink and 5.76Mbps uplink. With the outstanding feature of fully pin-to-pin compatibility with Quectel UMTS/HSPA UG95 and GSM/GPRS M95 module, it supports GSM/GPRS/EDGE and UMTS/HSPA/HSUPA networks, which enables integrators and developers to design their applications once and truly benefit from the flexibility of worldwide coverage and service afforded by the combination of the two most prevalent cellular technologies worldwide.

Overview

With cost-effective SMT form factor of 22.5 × 26.5 × 2.2mm and highly integration level, Quectel UG96-TE-A enables  ntegrators and developers to easily design their applications and take advantage from the module’s low power consumption and mechanical intensity.Its advanced LGA package allows fully automated manufacturing for high-volume applications. A rich set of Internet protocols, industry-standard interfaces (USB/UART/I2C/Status Indicator/PCM) and  bundant functionalities (USB drivers for Windows XP, Windows 7, Windows CE, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as wireless POS, metering, telematics, security, industry PDA/PC and tablet.

Key Benefits

• Worldwide UMTS/HSPA and GSM/GPRS/EDGE coverage
• Minimal SMT form factor ideal for small end products with tight space
• Easy drop-in migration to GSM/GPRS module
• Super slim profile in LGA package
• High-quality data and image transmission even in hazard conditions and dark environment
• Fast time-to-market: Reference designs, evaluation tools and timely technical support minimize design-in time and development efforts
• Robust mounting and interfaces

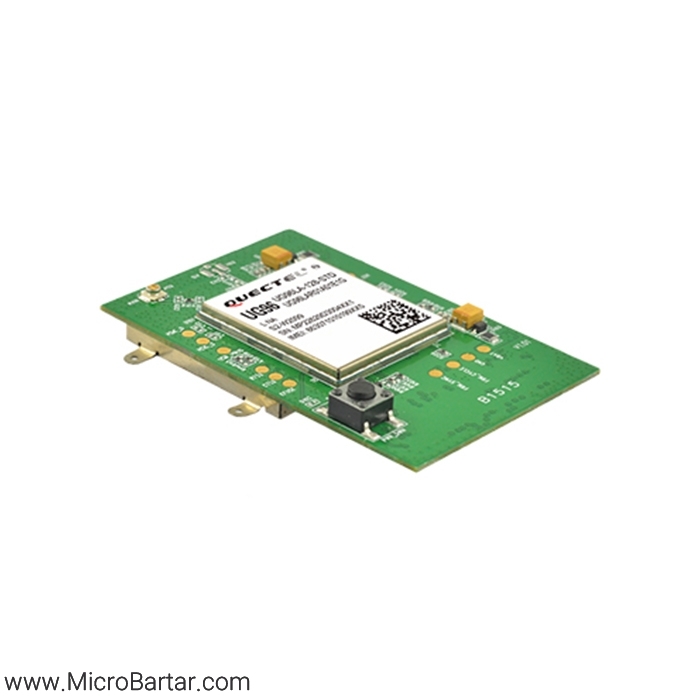

● Testing Adapter & Evaluation Board for Quectel UG96 Module
● Performance testing
● Testing adapter is that a Quectel module is embedded on the Printed Circuit Board (PCB) and can be plugged into the Evaluation Board for performance testing

برند

Quectel
