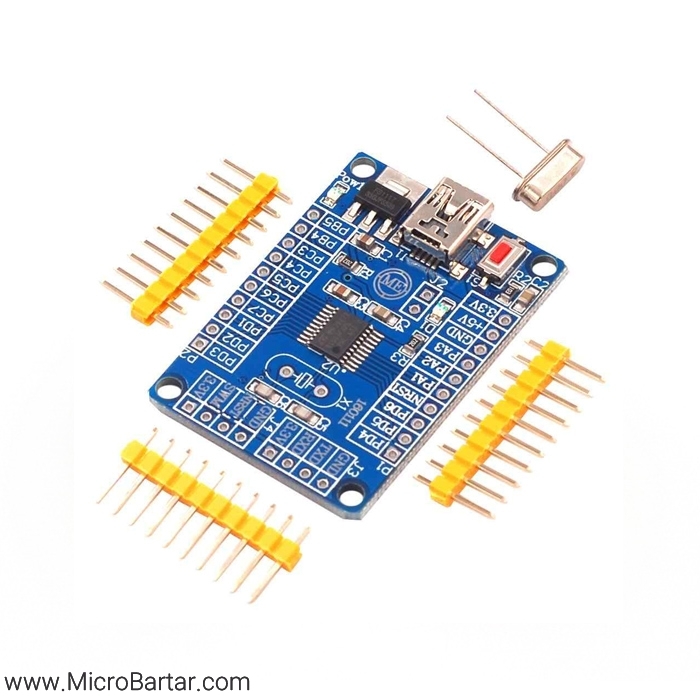

برد مینی آرم STM8S003F3P6

Chip Microcontroller 8-bit 8KB Flash 20TSSOP
Controller Series: STM8S
Program memory size: 8KB
Memory capacity, RAM: 1KB
CPU speed: 16MHz
Input / Output Number: 16
Digital chip package form: TSSOP
Number of stitches: 20
Embedded interface type: I2C, SPI, UART
Master IC: Using STM8S003F3P6 as the master IC
Delivery list: STM8S003F3P6 small system 1 block

Hardware resource description

One LED user light (blue)
One power LED indicator (red)
4 positioning holes
A reset switch
One download pin header
A serial port header
All IO leads
Can supply 3.3V 5V externally
Board size: 43mm * 31mm
