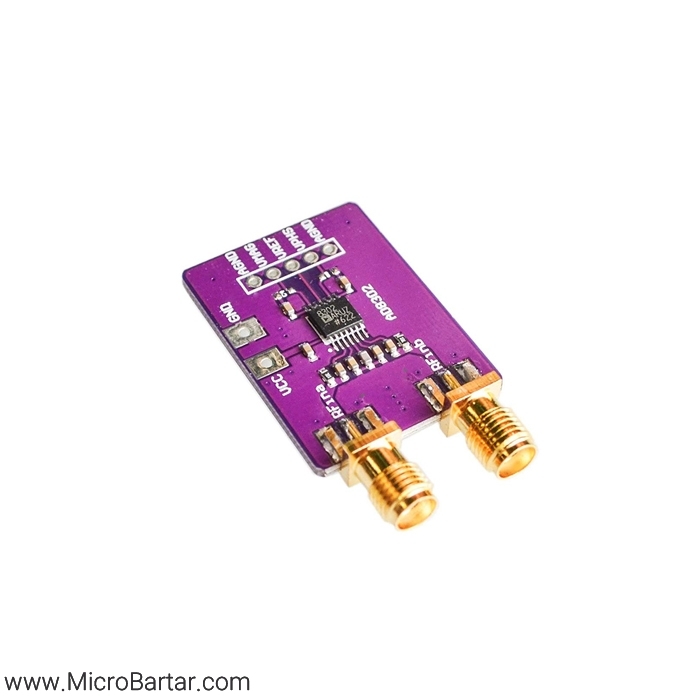

ماژول تشخیص بهره ، اتلاف و فاز AD8302

تماس بگیرید

توضیحات محصول

FEATURES

1. Measures Gain/Loss and Phase up to 2.7 GHz
2. Dual Demodulating Log Amps and Phase Detector
3. Input Range –60 dBm to 0 dBm in a 50ohm System
4. Accurate Gain Measurement Scaling (30 mV/dB) Typical Nonlinearity < 0.5 dB
5. Accurate Phase Measurement Scaling (10 mV/Degree) Typical Nonlinearity < 1 Degree
6. Measurement/Controller/Level Comparator Modes
7. Operates from Supply Voltages of 2.7 V–5.5 V
8. Stable 1.8 V Reference Voltage Output
9. Small Signal Envelope Bandwidth from DC to 30 MHz
11. Working voltage:5V

APPLICATIONS

1. RF/IF PA Linearization
2. Precise RF Power Control
3. Remote System Monitoring and Diagnostics
4. Return Loss/VSWR Measurements
5. Log Ratio Function for AC Signals
