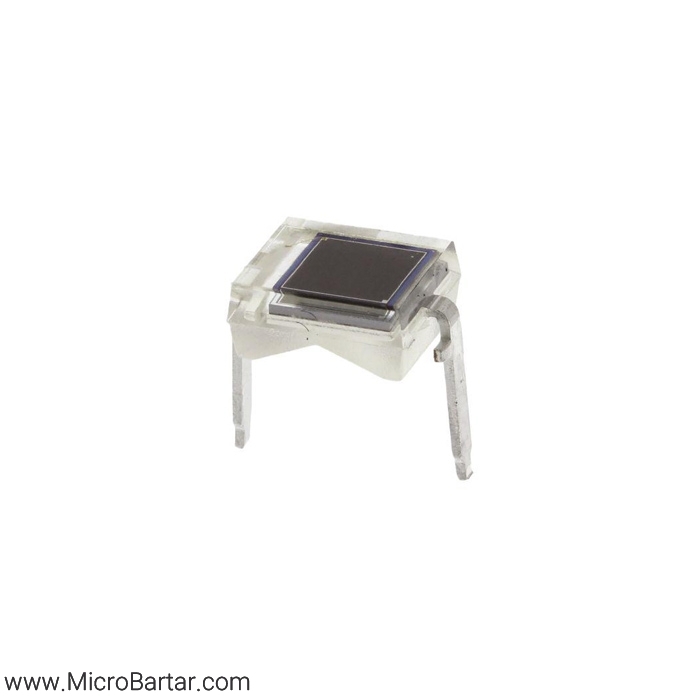

BPW34-B Photodiode

شناسه محصول: BPW34-B-Photodiode دسته:

تماس بگیرید

توضیحات محصول

BPW34-B Photodiode

PIN Photodiodes DIL Package This family of PIN photodiodes, from OSRAM Opto Semiconductor, are in DIL plastic packages. The BPW 34 family offer enhanced blue sensitivity from a radiant sensitive area of 2.73 x 2.73 mm². These PIN photodiodes have a half angle of 60° and are available in both through-hole and surface mounted (SMD) options. The BPW 34 B and BPW 34 BS are designed for applications with a wavelength of 350 to 1100 nm. The BPX 48 series are designed for applications with a wavelength of 400 to 1100nm. The contain a double diode which enables a homogeneous acceptance. The BPX 48 also offer high photosensitivity. Suitable applications for the PIN photodiodes in DIL plastic packages include; photointerrupters, industrial electronics and control & drive circuits. The BPX 48 photodiodes can also be used for edge control, follow-up control and path/angle scanning. Photodiodes, OSRAM Opto Semiconductors

  • Polarity: Forward
  • Peak Photo Sensitivity: 0.2A/W
  • Mounting Type: Through Hole
  • Wavelength of Peak Sensitivity: 850nm
  • Diode Material: Si
  • Maximum Wavelength Detected: 1100nm
  • Height: 2.2mm
  • Minimum Wavelength Detected: 350nm
  • Width: 4mm
  • Length: 4.5mm
  • Package Type: DIP
  • Number of Pins: 2
  • Angle of Half Sensitivity: 60 °
  • Spectrums Detected: Infrared, Ultraviolet, Visible Light
  • Rohs: RoHS Certificate of Compliance
