These BS86B12A-3 are a series of Flash Memory type 8-bit high performance RISC architecture microcontrollers with fully integrated touch key functions. With all touch key functions provided internally and with the convenience of Flash Memory multi-programming features, these BS86B12A-3 have all the features to offer designers a reliable and easy means of implementing touch switches within their product applications.
CPU Features
Operating Voltage
fSYS= 8MHz: 2.7~5.5V
fSYS= 12MHz: 2.7~5.5V
fSYS= 16MHz: 4.5V~5.5V
Up to 0.25us instruction cycle with 16MHz system clock at VDD=5V
Power down and wake-up functions to reduce power consumption
Three Oscillators
– High Speed Internal RC —
HIRC: 8/12/16MHz
– Low Speed Internal RC — LIRC: 32kHz
– Low speed External Crystal —
LXT: 32768Hz (for BS86C16A-3/
D20A-3 only)
Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
All instructions executed in one to three instruction cycles
Table read instructions
115 powerful instructions
Up to 8-level subroutine nesting
Bit manipulation instruction
Peripheral Features
Flash Program Memory: 2Kx16 ~ 8Kx16
RAM Data Memory: 384×8 ~ 768×8
True EEPROM Memory: 64×8
Fully integrated 12/16/20 touch key functions — require no external components
Watchdog Timer function
Up to 26 bidirectional I/O lines
PMOS Source Current Adjustable
Software controlled 4-SCOM lines LCD driver with 1/3 bias
One external interrupt line shared with I/O pin
Multiple Timer Module for time measure, input capture, compare match output, PWM output or single pulse output function
Dual Time-Base functions for generation of fixed time interrupt signals
Multi-channel 12-Bit resolution A/D converter
Serial Interfaces Module – SIM for SPI or I2C
UART Interface
Low voltage reset function
Low voltage detect function
Flash program memory can be re-programmed up to 100,000 times
Flash program memory data retention > 10 years
True EEPROM data memory can be re-programmed up to 1,000,000 times
True EEPROM data memory data retention > 10 years

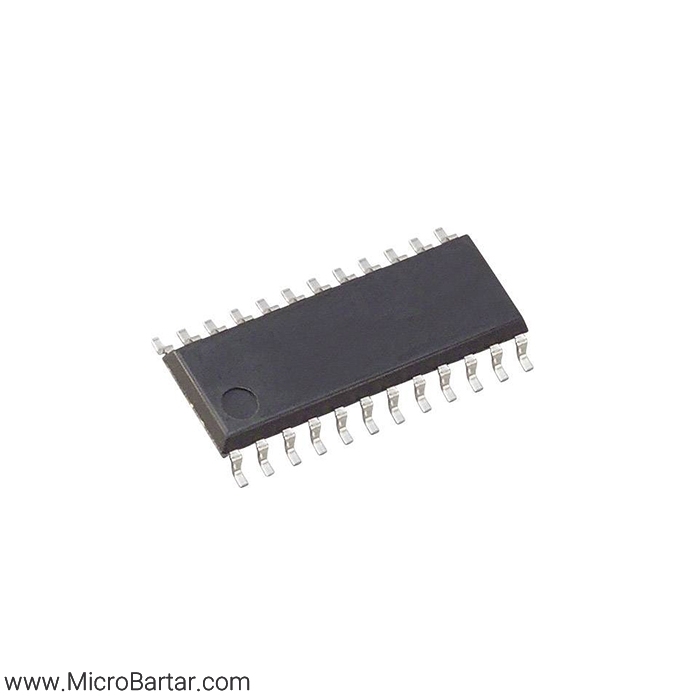

Package: 20/24/28-pin SOP
برند | Holtek |
---|---|
نوع پکیج | SMD |
