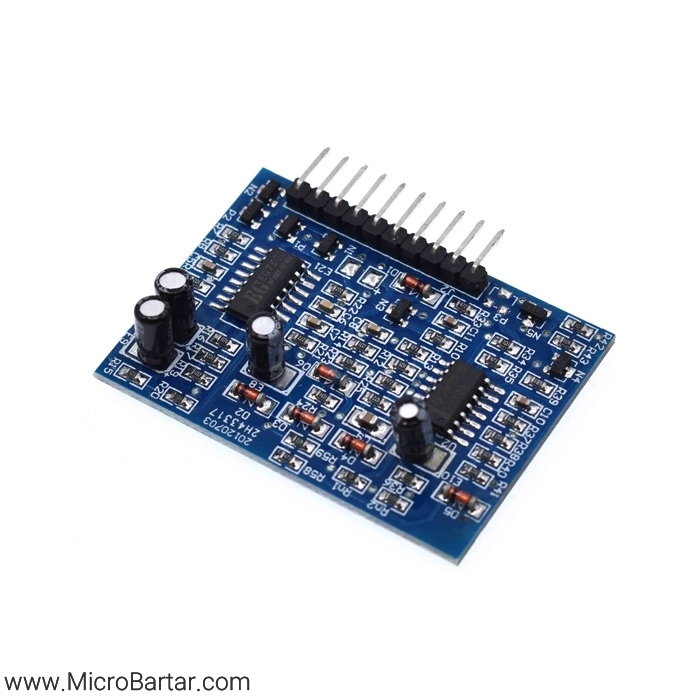

ماژول اینورتر موج سینوسی EG7500

توضیحات محصول

Use push-pull mode boost structure

The PWM frequency of EG7500 boost driver board is ۴۰KHZ

With ± 1A current drive output capability

Overvoltage shutdown > 15V ± 0.5V

Undervoltage buzzer <10.5V ± 0.5V

Undervoltage shutdown <9.5V ± 0.5V

Overcurrent shutdown IFB pin > 48mV

PCB material: FR-4 , thickness : 0.5mm

Size: length ۴۶mm × width 33.5mm

Maximum height of parts on board: 9mm

Weight: ۷ grams

EG7500 driver board pin function description:

1 Temperature

2 Under voltage beep

3 VCC + 12V

4 Fan control

5 VFB

6 GND

7 + 127

8-9 Drive output

10 IFB mos tube Rds detection, over current protection detection

Over-current protection follows the mos tube driven by pins 8-9
