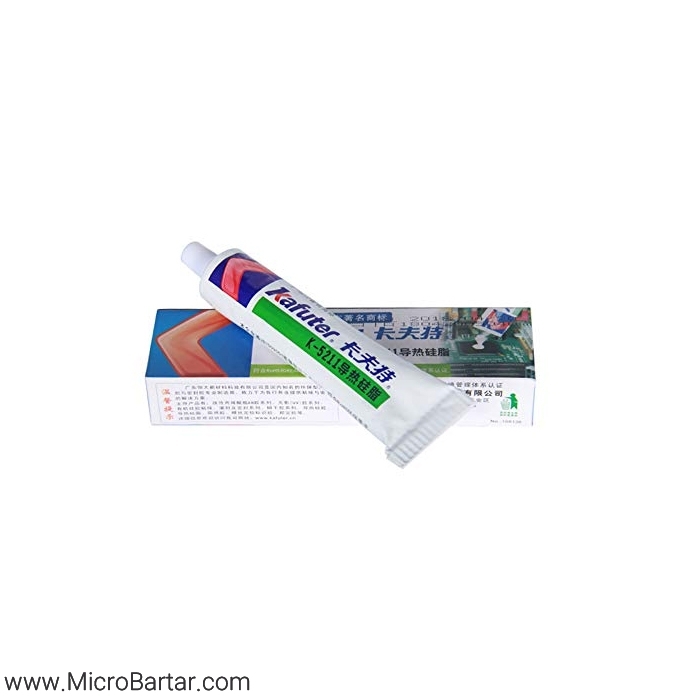

K-5211 thermal grease is produced using imported raw materials and formulas. It is made of a paste grease made from a combination of metal oxides and organosilicon with good thermal conductivity and insulation properties. Good electrical insulation, wide operating temperature (operating temperature -50°C～+200°C), good stability, lower consistency and good workability. This product is non-toxic, non-corrosive, tasteless, dry, and insoluble.
Widely used in electronics, electrical appliances, components, heat dissipation, filling or coating, in order to derive the heat generated by components. Such as CPU and heat sink interstitial, high-power transistor, thyristor components, diodes and substrate (aluminum, copper) in contact with the filling of the gap, as the machine power amplifier tube and heat sink, semiconductor refrigeration and so on. Reduce the operating temperature of the heating element.
- Exterior : White paste
- Penetration (1/10mm, 25°C) : 260～300
- Specific gravity (g/cm3) : 1.9 to 2.1
- Oil Dispersion (%, 200°C, 8h) : ≤2.0
- Volatile (%, 200°C, 8h) : ≤2.0
- Breakdown voltage strength (kv/mm) : ≥10
- Volume resistance (Ω.cm) : 4×1014
- Thermal conductivity (w/m·k) : ≥1.2
- Weight: 60g
The surface to be coated is cleaned, oil stains are removed, and the thermally conductive silicone ester is directly extruded to uniformly coat the surface to be coated. The coating method can be applied by brushing, squeegeeing or roller coating as required.
