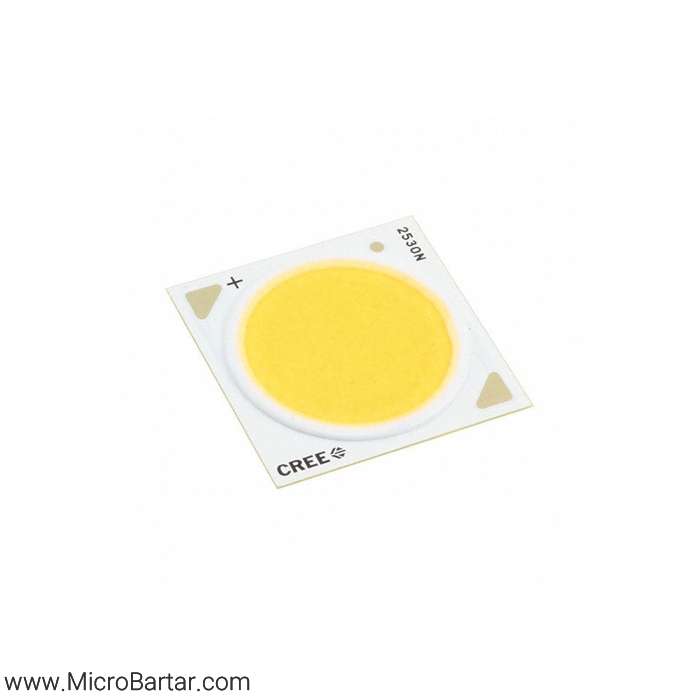

LED XLamp CXA2530 36v 65w White Cree

The XLamp® CXA2530 LED Array delivers high lumen output and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering. Optimized to simplify designs and lower system cost, the CXA2530 LED Array can deliver system-level performance of 2000 to 5000 lumens, enabling applications that traditionally use halogen, ceramic metal halide and compact fluorescent technology.

Features

• Size: 23.85 x 23.85 mm
• Product Options: High-CRI
• Maximum Drive Current: 1.6 A
• Max Power (W): 65 W
• Light Output: 3000 – 5700 lm
• Maximum Efficacy at Binning Conditions (lm/W): 145 lm/W
• Light Emitting Surface (LES): 19 mm
• Typical Forward Voltage: 36.4 V @ 800 mA
• Maximum Reverse Current: 0.1 mA
• Viewing Angle: 115 °
• Binning: 85°C
• ANSI (White): 2- and 4-Step EasyWhite®
• Maximum ESD Withstand Voltage: 8000 V (HBM per Mil-Std-883D)
• RoHS-Compliant: Yes
• REACh-Compliant: Yes
• UL-Recognized: Yes – Level 4 Enclosure Consideration
