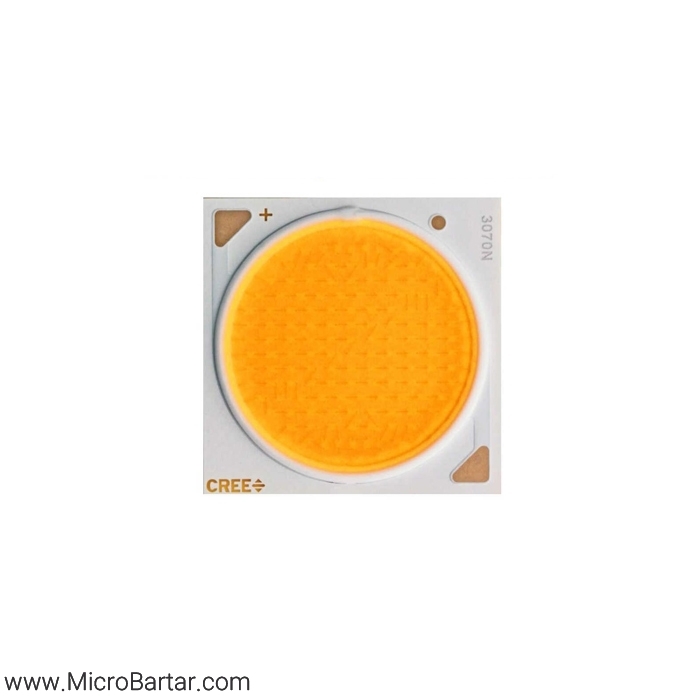

LED XLamp CXA3070 36v 117w Warm White Cree

High lumen output and efficacy from a single, easy-to-use LED array

The XLamp® CXA3070 LED Array delivers high lumen output and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering. Optimized to simplify designs and lower system cost, the CXA3070 LED Array can deliver system-level performance of 8000 to over 10000 lumens, enabling very high lumen output applications such as high bay and ceramic metal halide replacements.

Features

• Size: 27.35 x 27.35 mm
• Product Options: High-CRI
• Maximum Drive Current: 2.8 A
• Max Power (W): 117 W
• Light Output: 9000 – 11000 lm
• Maximum Efficacy at Binning Conditions (lm/W): 145 lm/W
• Light Emitting Surface (LES): 23 mm
• Typical Forward Voltage: 36.2 V @ 1.9 A
• Maximum Reverse Current: 0.1 mA
• Viewing Angle: 115 °
• Binning: 85°C
• ANSI (White): 2- and 4-Step EasyWhite®
• Maximum ESD Withstand Voltage: 8000 V (HBM per Mil-Std-883D)
• RoHS-Compliant: Yes
• REACh-Compliant: Yes
• UL-Recognized: Yes – Level 4 Enclosure Consideration
