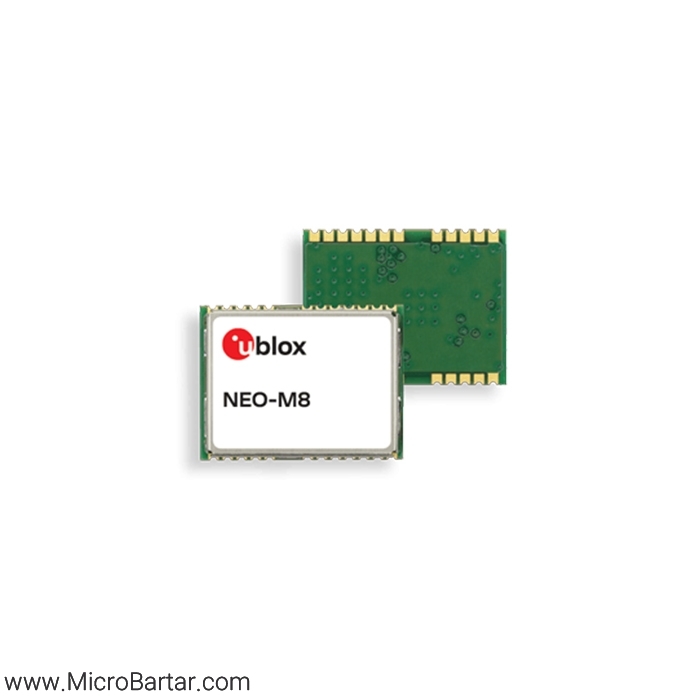

The GNSS Module ublox NEO-M8Q of standalone concurrent GNSS modules is built on the exceptional performance of the ublox M8 GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS) engine in the industry proven NEO form factor. GNSS Module ublox NEO-M8Q provide best performance and easier RF integration. For RF optimization the GNSS Module ublox NEO-M8Q-0 features an additional front‑end LNA for easier antenna integration and a front‑end SAW filter for increased jamming immunity.

GNSS features

GNSS: BeiDou, Galileo, GLONASS, GPS / QZSS
Number of concurrent GNSS: 3
Concurrent GNSS: yes
Oscillator: TCXO

Antenna

Pin (active) for external antenna: yes
Pin (passive) for external antenna: yes
Area
Global: yes

Interfaces

UART: 1
USB: 1
SPI: 1
DDC (I²C compliant): 1

Electrical data

Minimum supply [V]: 2.70
Maximum supply [V]: 3.6

Environmental data, quality & reliability

Maximum temperature [°C]: 85
Minimum temperature [°C]: -40
Size [mm]: 12.2 x 16 x 2.4

Features

Additional SAW: yes
Additional LNA: yes
Active antenna / LNA control: yes
RTC crystal: yes
