Quectel BC68JA-TE-B KIT

تماس بگیرید

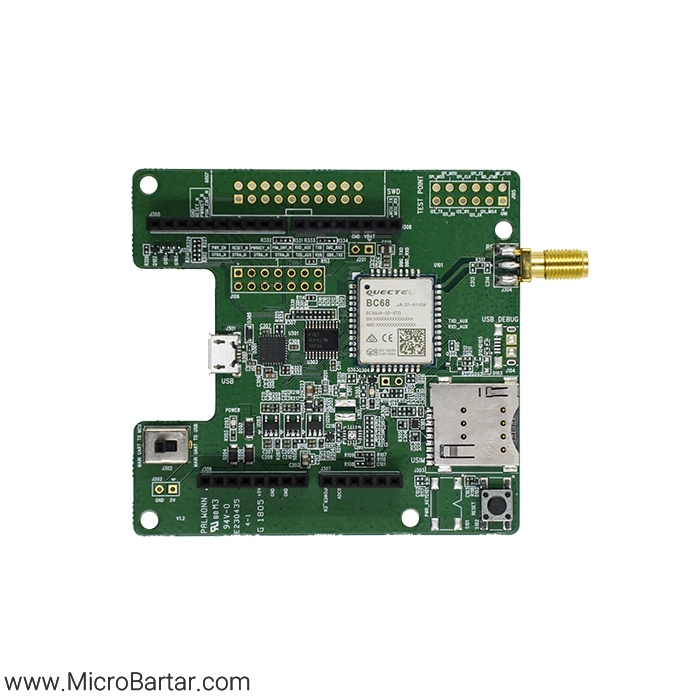

Quectel BC68JA-TE-B KIT is a NB-IoT evaluation board which supports Arduino interface. Designed in 74.0mm × 70.0mm × 1.6mm form factor, Quectel BC68JA-TEB KIT can be used either alone or in conjunction with STM32 Nucleo-64 development board, in order to develop and debug applications for communication with mobile network operators’ infrastructure equipment through the NB-IoT radio protocol (3GPP Rel-14).

Power Supply

USB interface: Supply voltage: 4.75V~5.25V, typical supply voltage: 5.0V
Arduino interfaces: Supply voltage: 4.75V~5.25V, typical supply voltage: 5.0V
Transmitting Power: 23dBm±2dB.

Temperature Range

Operation temperature range: -35°C ~ +75°C1
Extended temperature range: -40°C ~ +85°C2
Storage temperature range: -40°C ~ +90°C

USIM Interface

Support 1.8V/3.0V external Class B USIM card
Arduino Interfaces: Used to connect with STM32 Nucleo-64 development board
RESET Button: Used to reset BC68 module
Physical Characteristics: Size: (74.0±0.15)mm ×(70.0±0.15)mm ×(1.6±0.15)mm
Firmware upgrade via main port or DFOTA
Connected to antenna pad with 50Ω impedance control
