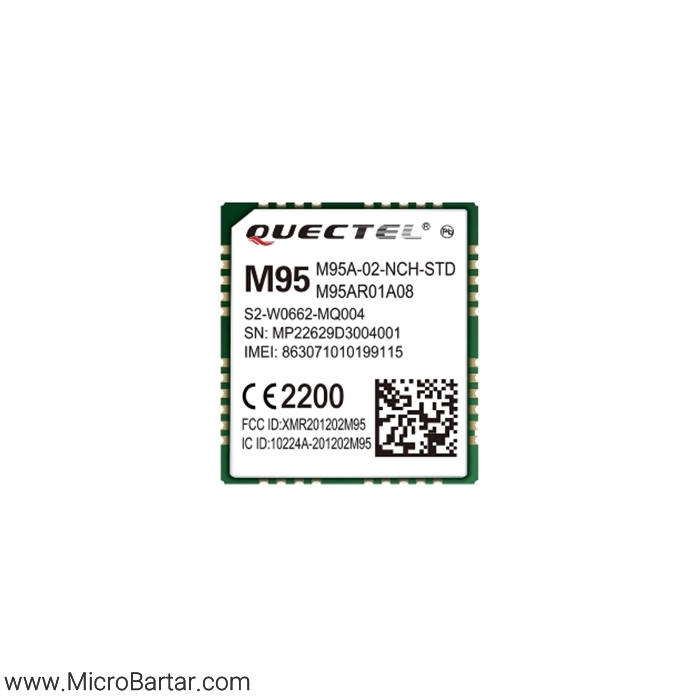

M95 is a highly compact Quad-band GSM/GPRS module in LCC castellation packaging in the market. It adopts the latest MTK chipset and features compact size of 19.9mm × 23.6mm × 2.65mm, ultra low power consumption and extended temperature range.

Overview

With surface mounted technology, the low profile and small size of LCC package make this module easily embedded into the low-volume applications and ensure the reliable connectivity with the applications. This kind of package is ideally suited for large-scale manufacturing which has the strict requirements for cost and efficiency. Built-in unique QuecFOTATM technology allows module to update the firmware remotely. Additional features such as integrated TCP/IP protocol stacks, serial multiplexer and enhanced AT commands guarantee fast and reliable transmission of data, voice, SMS via GSM/GPRS network and extend the functionality of the application at no additional cost. Its compact size and ultra low power consumption makes this module a very cost effective and feature-rich platform that is quite suitable for a wide range of M2M applications such as VTS, industry PDA, personal tracking, wireless POS, smart metering and many other M2M applications.

Key Benefits

● Highly compact Quad-band GSM/ GPRS module.
● Easier soldering process with LCC package.
● Embedded Class-AB amplifier.
● Power consumption as low as 1.3mA.
● Embedded powerful Internet service protocols, multiple Sockets & IP addresses.
● eCall.
● QuecFOTATM.
● Jamming detection.
● DTMF.
● QuecLocator.
