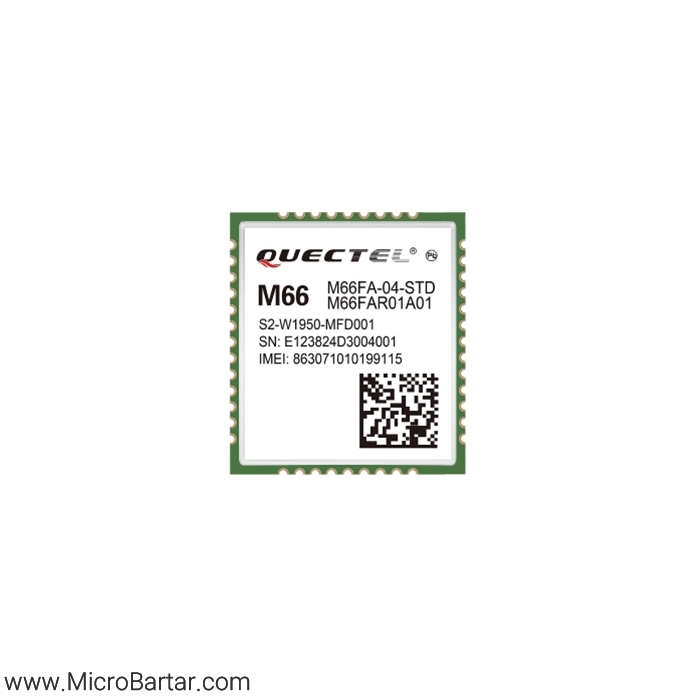

Quectel M66

شناسه محصول: Quectel-M66 دسته: برچسب: , , , , , , ,

توضیحات محصول

M66 is an ultra-small quad-band GSM/GRPS module using LCC castellation packaging on the market. Based on the latest 2G chipset, it has the optimal performance in SMS & Data transmission and audio service even in harsh environment. The ultra-compact 15.8mm × 17.7mm × 2.3mm profile makes it a perfect platform for size sensitive applications.

Overview

This module adopts surface mount technology, making it an ideal solution for durable and rugged designs. The low profile and small size of LCC package makes sure can be easily embedded into size-constrained applications, and provides reliable connectivity with applications. This kind of package is ideally suited for large-scale manufacturing which has strict requirements for cost and efficiency.
The compact form factor, low power consumption and extended temperature make this 2G module a best choice for M2M applications such as wearable devices, automotive, industrial PDA, personal tracking, wireless POS, smart metering, telematics, and more.

Key Benefits

● Extremely compact quad-band GSM/GPRS module.
● Easier soldering process with LCC package.
● Power consumption as low as 1.3mA.
● Weight Approx 1.3g.
● Bluetooth BT 3.0 Profile: SPP, HFP.
● Analog Audio Channel 2 Output Channels and 1 Input Channel.
● GSM 07.07, 07.05 and other Enhanced AT Commands.
● ×2 GSM Antenna Pad and Bluetooth Antenna Pad.
● Support Voice, Bluetooth, QuecFOTATM and Quectel OpenCPU functions.
● Embedded powerful Internet service protocols, multiple Sockets & IP addresses.
