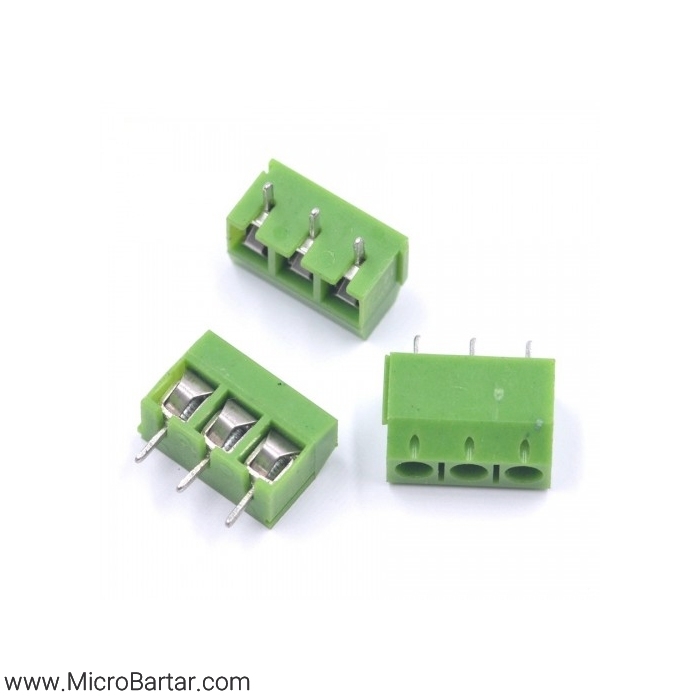

Screw Terminal Block Connector KF126-3P

تماس بگیرید

توضیحات محصول

Screw Terminals with 5mm pitch pins. Comes in 2 or 3 positions and have the really cool feature of slide-locking together to form any size you need (4, 5, up to 20 without problems). Rated up to 250V @ 8A. Terminal can accept 26 to 14AWG wire. 5mm/197mil pin pitch will line up well with standard 0.1″ perf boards but the pins are thick enough (1.0mm OD) that you may need to increase the hole diameter on some perf boards.

Rated Voltage: 250V
Rated Current: 8A
Withstanding Voltage: 2000v/1Min
Wire Range: 26-14AWG
Pitch: 5mm
