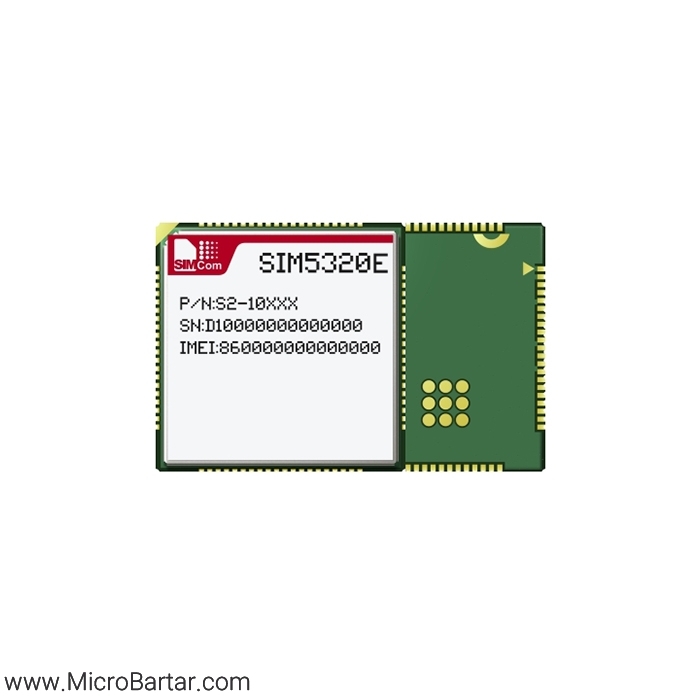

Simcom SIM5320E

شناسه محصول: Simcom-SIM5320E دسته: برچسب: , , , , , , ,

1,681,024 تومان

4 در انبار

The SIM5320E series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module in a SMT package which supports HSDPA up to 3.6Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application. It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.

General features

• SIM5320A:
– Dual-Band UMTS/HSDPA 850/1900MHz
– Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320(J)E:
– Dual-Band UMTS/HSDPA 900/2100MHz
– Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5320J:
– Dual-Band UMTS/HSDPA 850(800)/2100MHz
– Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
– UMTS 850/1900: 0.25W
– UMTS 900/2100: 0.25W
– GSM850/GSM900: 2W
– DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4~ 4.2V
• Operation temperature: -30℃ to +80℃
• Extended operation temperature: -40℃ to +85℃
• Dimension: 30 * 30 * 2.9 mm
• Weight: 5.6g

Support embedded Script Language

• LUA Script Language
• Embedded AT *
Specifications for Data transfer
• HSDPA
– Max. 3.6Mbps(DL)
• WCDMA
– Max. 384Kbps(DL),     Max.384Kbps(UL)
• EDGE Class:
– Max. 236.8Kbps(DL),   Max.118Kbps(UL)
• GPRS
– Max. 85.6Kbps(DL),    Max.42.8Kbps(UL)
• CSD
– GSM data rate 14.4Kbps
– WCDMA data rate 57.6Kbps
– WCDMA 64kbps CSD for Video call
• Multi-PDP connect application

وزن 2 گرم
برند

Simcom
