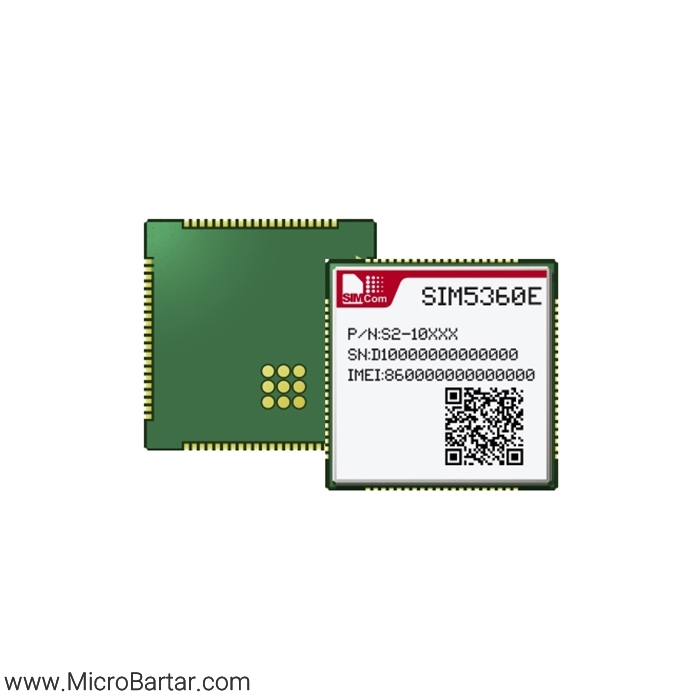

The SIM5360E series is Dual-Band HSPA+/WCDMA and Quad-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSPA+ up to 14.4Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, etc. With abundant application capability like TCP/UDP/FTP/FTPS/ HTTP/ HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.

General features

• SIM5360A：
– Dual-Band UMTS/HSPA+ 850/1900MHz
– Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360(J)E：
– Dual-Band UMTS/HSPA+ 900/2100MHz
– Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360J(D)：
– Dual-Band UMTS/HSPA+ 800(850)/2100MHz
– Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
– UMTS 850/1900: 0.25W
– UMTS 900/2100: 0.25W
– GSM850/GSM900: 2W
– DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃ to +85℃
• Dimension: 30 X 30X 2.9 mm
• Weight: 5.7g

Specifications for SMS

• Point to point MO and MT
• Text and PDU mode
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad(5*5)
• Constant current sink
• GPIO
• RTC
• ADC
• SDIO
• PCM *
