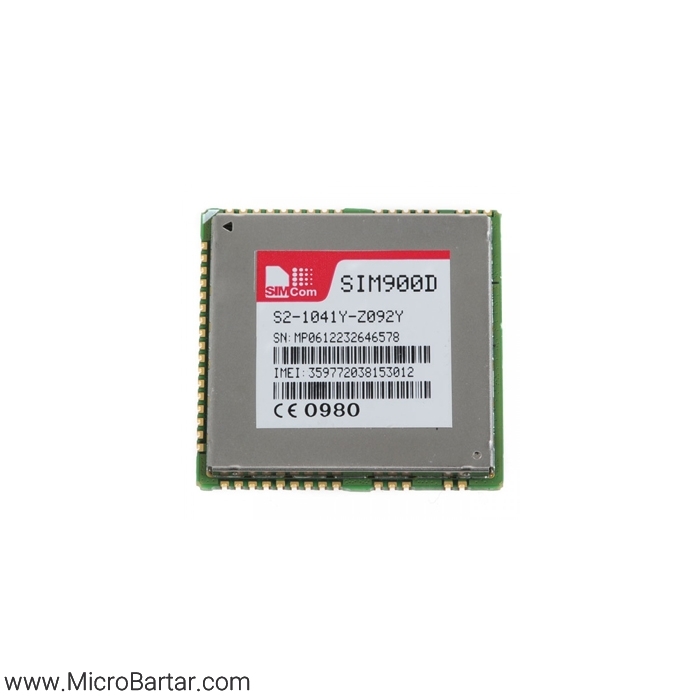

SIMCom presents an ultra compact and reliable wireless module-SIM900D. This is a complete Quad-band GSM/GPRS module in a SMT type and designed with a very powerful single-chip processor integrating AMR926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions. Furthermore, SIM900D can be compatible with SIM340DZ.

Featuring an industry-standard interface, the SIM900D delivers GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 33mm x 33mm x 3 mm, SIM900D can fit almost all the space requirements in your M2M applications, especially for slim and compact demands of design.

General features

Quad-Band 850/900/1800/1900 MHz
GPRS multi-slot class 10/8
GPRS mobile station class B
Compliant to GSM phase 2/2+Class 4 (2 W @850/900 MHz)
Class 1 (1 W @ 1800/1900MHz)* SAIC (Single Antenna Interference Cancellation)
Dimensions: 33 x 33 x 3 mm
Weight: 6.2g
Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)
SIM application toolkit
Supply voltage range : 3.2 … 4.8V
Low power consumption: 1.0mA (sleep mode&BS-PA-MFRMS=9)
Operation temperature: -40°C to +85 °C

Specifications for Fax

Group 3, class 1

Specifications for GPRS Data

GPRS class 10: max. 85.6 kbps (downlink)
PBCCH support
Coding schemes CS 1, 2, 3, 4
PPP-stack
USSD
Non transparent mode

Specifications for SMS via GSM/GPRS

Point to point MO and MT
SMS cell broadcast
Text and PDU mode

Software features

0710 MUX protocol
Embedded TCP/UDP protocol
FTP/HTTP

Special firmware

Embedded AT
FOTA
MMS

Specifications for Voice

TricodecHalf rate (HR)
Full rate (FR)
Enhanced Full rate (EFR)
AMRHalf rate (HR)
Full rate (FR)
Hands-free operation (Echo suppression)

Interfaces

Interface to external SIM 3V/ 1.8V
Analog audio interface
RTC backup
SPI interface (option)
Serial interface
Embedded SIM (option )
Antenna pad
GPIO
PWM
ADC
Charge interface for Li battery

Compatibility

AT cellular command interface
Certifications:
CE
ROHS
REACH
Carrier Approvals
Orange
