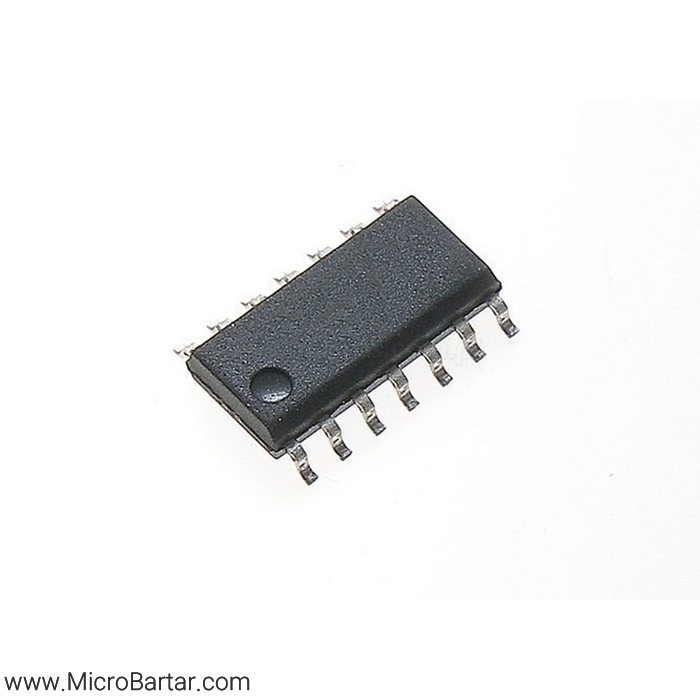

The UTC UTC4013G SOP14 is a dual D-type flip-flop which has two independent circuits and each flip-flop features independent data, set, reset, and clock inputs and outputs. The input level applied to DATA input are transferred to Q and Q output by rising edge of the clock pulse. When SET input is “H”, and RESET input is “L”, outputs become Q=”H” and Q =”L”. When SET input is “L” and RESET input is “H”, outputs become Q=”L” and Q =”H”. When both SET input and RESET input are at “H”, outputs become Q=”H” and Q =”H”.
Power supply voltage 3V to 18V
Maximum Input Current of 1uA at 18V Over Full Package Temperature
Maximum quiescent supply current is 4μA
