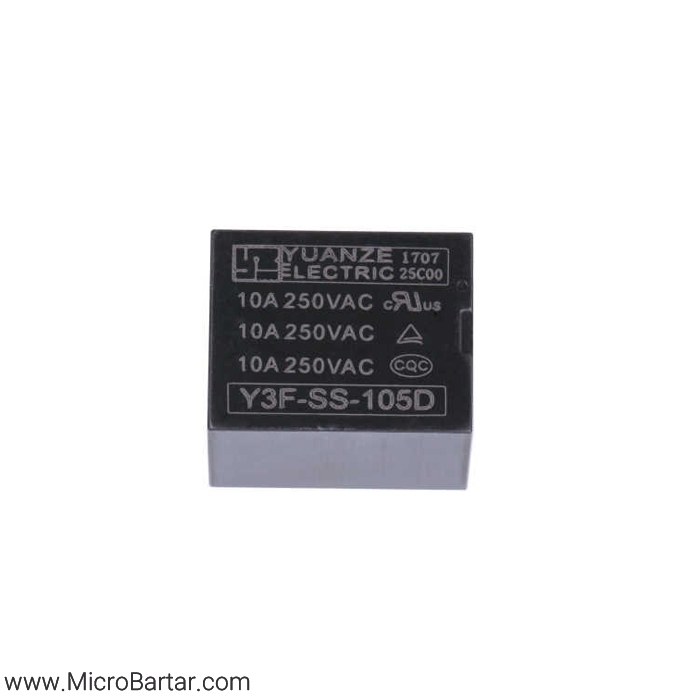

رله Y3F-SS-105D 5V 10A Silver Plate

شناسه محصول: Y3F-SS-105D-05V-10A-Silver دسته: برچسب: , , , , , , ,

6,000 تومان

91 در انبار

مقایسه

توضیحات محصول

Specification

Material: Silver Alloy
Nominal voltage: DC 5V
Coil resistance: 69Ω±10% (at 23±5℃)
Rated current: DC 72mA±10% (at 23±5℃)
Operate voltage: DC 3.75V Max ((at 23±5℃)
Release voltage: DC 0.25V Min ((at 23±5℃)
Maximum voltage: DC 6.5V(130% of nominal voltage)

Insulation resistance: 1000MΩ Min (at DC500V)
Electrical life: 100,000 Operations Min (at 10A 250VAC)
Mechanical life: 10,000,000 operations Min
Maximum operating frequency: Mechanically 18000 cycle/h     Electrically 600 cycle/h
(1) UL certified: File NO. E341498;10A 250VAC; 15A 125VAC;
(2) TUV certified: File No. R50197243; 10A 250VAC;10A 30VDC
(3) CQC certified: File No. CQC11002056154; 10A 250VAC;10A/6A 250VAC
(4) ISO9001:2008 certified: File No. 05311Q22581R0S
(5) RoHS and REACH Compliant
Unit weight: Approx.12g

برند

Yuanze

ولتاژ

5v

جریان

10A
