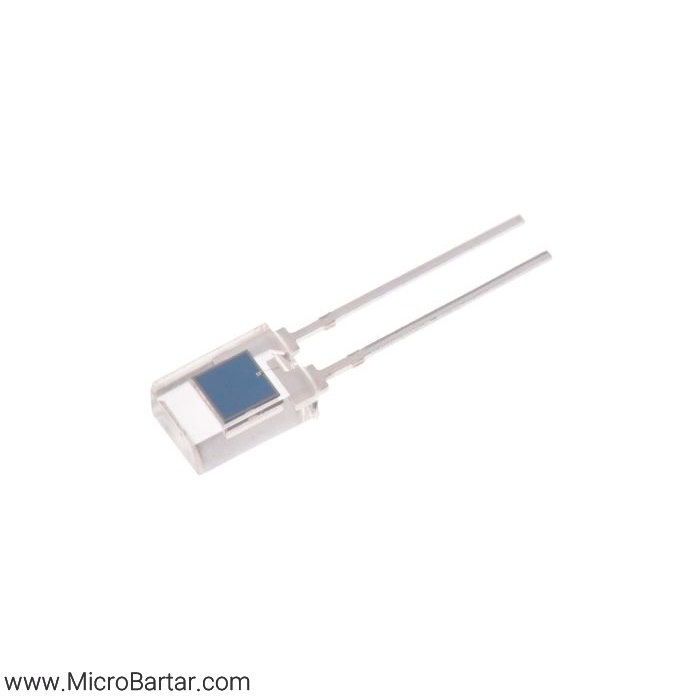

BPW46 Photodiode

BPW46 Series PIN Photodiodes

The BPW46 series, from Vishay Semiconductor, are a family of PIN photodiodes. They are in side-looking clear plastic packages for through-hole mounting. The BPW46 are designed for visible and near IR radiation. These PIN photodiodes are ideal for high speed photo detector applications.

• Manufacturer: Vishay
• Product Category: Photodiodes
• RoHS: Details
• Product: PIN Photodiodes
• Mounting Style: Through Hole
• Peak Wavelength: 900 nm
• Dark Current: 2 nA
• Vr – Reverse Voltage: 60 V
• Rise Time: 100 ns
• Fall Time: 100 ns
• Half Intensity Angle Degrees: 65 deg
• Minimum Operating Temperature: – 40 C
• Maximum Operating Temperature: + 100 C
• Height: 6.4 mm
• Length: 5 mm
• Packaging: Bulk
• Width: 3 mm
• Brand: Vishay Semiconductors
• Noise Equivalent Power – NEP: 4E-14 W/sqrt Hz
• Pd – Power Dissipation: 215 mW
• Photocurrent: 70 uA
• Product Type: Photodiodes
• Factory Pack Quantity: 4000
• Subcategory: Optical Detectors and Sensors
• Unit Weight: 240,881 mg
