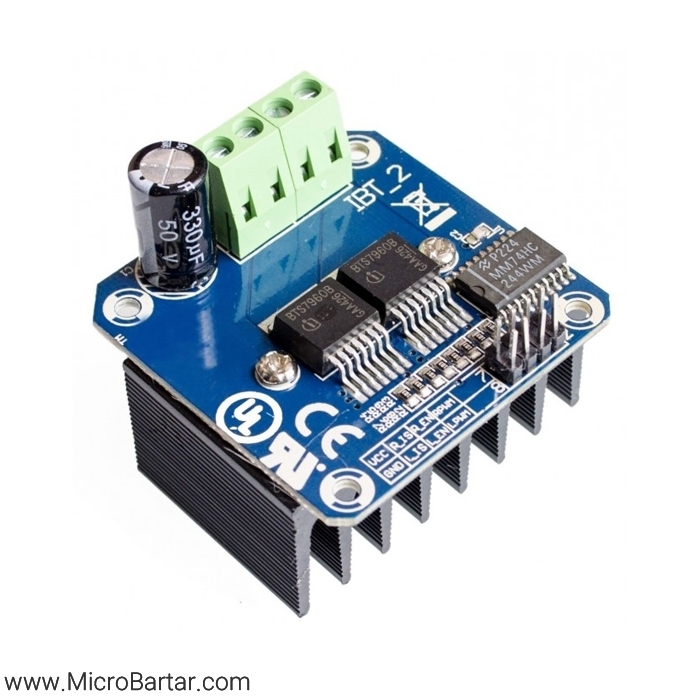

ماژول درایور موتور 43 آمپر BTS7960

81,000 تومان

در انبار موجود نمی باشد

مقایسه

توضیحات محصول

Product Features

* Double BTS7960 large current H bridge driver, limit up to 43A large current output, with a strong drive and brake effects
* 5V isolate with MCU; and effectively protect MCU;
* 5V power indicator on board;
* voltage indication of motor driver output end;
* Isolation chip 5 V power supply (can share with MCU 5 V);
* Able to reverse the motor forward; Two PWM input frequency up to 25kHZ;
* Two heat flow passing through an error signal output;
* Isolated chip 5V power supply (can be shared with the MCU 5V); Can also use the on-board 5V supply;
* The supply voltage 5.5V to 27V
* Weight: about 71g

* Model: IBT-2
* Input voltage: 6V-27V
* Maximum current: 43A
* Input level: 3.3-5V
* Control mode: PWM or level
* Duty Cycle: 0-100%
* Size: about 5 x 5 x 4cm(L x W x H)
* Weight: about 71g
