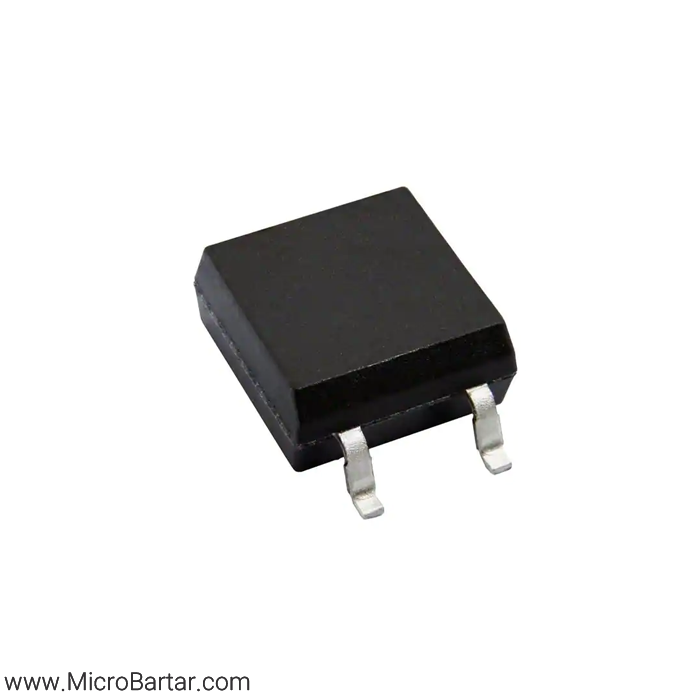

CPC1017N SOP-8

شناسه محصول: CPC1017N-SOP-8 دسته: برچسب:

توضیحات محصول

The CPC1017N is a miniature single-pole, normally-open (1-Form-A) solid state relay in a 4-pin SOP package that employs optically coupled MOSFET technology to provide 1500Vrms of input to output isolation. The super-efficient MOSFET switches and photovoltaic die use IXYS Integrated Circuits Division’s patented OptoMOS architecture while the optically coupled output is controlled by a highly efficient infrared LED. IXYS Integrated Circuits Division’s state of the art double-molded vertical construction packaging enables CPC1017N to be one of the world’s smallest relays. It offers board space savings of at least 20% over the competitor’s larger 4-pin SOP relay.

Features

Manufacturer: IXYS
Product Category: Solid State Relays – PCB Mount
RoHS: Details
Packaging: Tube
Mounting Style: PCB Mount
Load Current Rating: 100 mA
Load Voltage Rating: 60 VDC
Relay Contact Form: 1 Form A (SPST-NO)
Package/Case: SOP-4
Output Type: MOSFET
Input Current: 50 mA
Length: 4.089 mm
Width: 3.8 mm
Height: 2.184 mm
Series: CPC1017
Contact Form: SPST (1 Form A)
Product: SSR – Solid State Relays
Termination Style: SMD/SMT
Type: Miniature
Brand: IXYS Integrated Circuits
Input to Output Isolation Method: Optocoupler
Moisture Sensitive: Yes
Pd – Power Dissipation: 400 mW
Product Type: SSR – Solid State Relays
Factory Pack Quantity: 100
Subcategory: Relays
Tradename: Clare
Unit Weight: 76 mg
