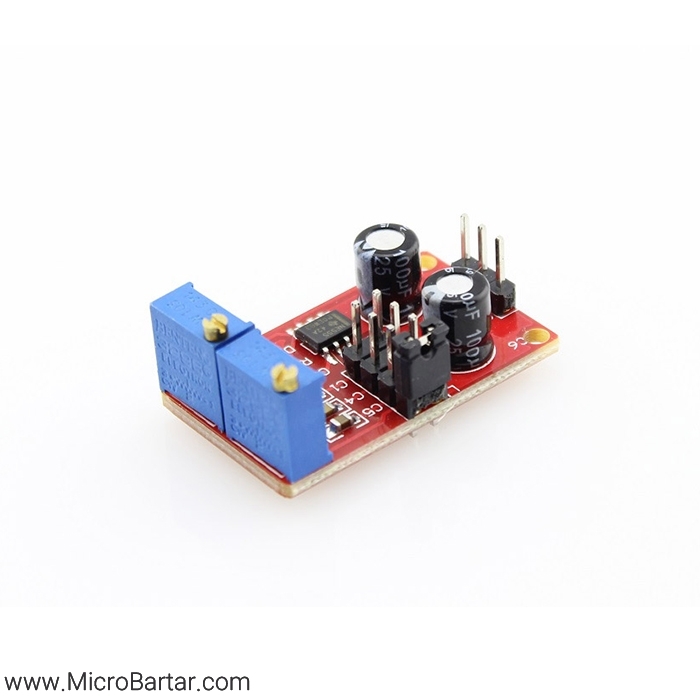

ماژول نوسان ساز NE555

توضیحات محصول

Specifications

Main chip: NE555.
Input Voltage: 5V-15V DC.
Generate adjustable pulse for MCU.
Generate adjustable pulse,to control circuitry associated.
The output current can be 15 MA around; when 12V power supply, the output current can 35 MA around.
Input current: >=100 MA.
Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different).
Max output current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%).
Output with LED indication(low level, LED will on; high level, LED will off; low frequency, the LED flashes).
Dimensions: 32 x 22 x 20(LxWxH) mm.

Application

As a square wave signal generator generates a square wave signal used for experimental development.
Used to drive a stepper motor for generating a square wave drive signal.
Generate adjustable pulse for MCU.
Generate adjustable pulse, to control circuitry associated.
