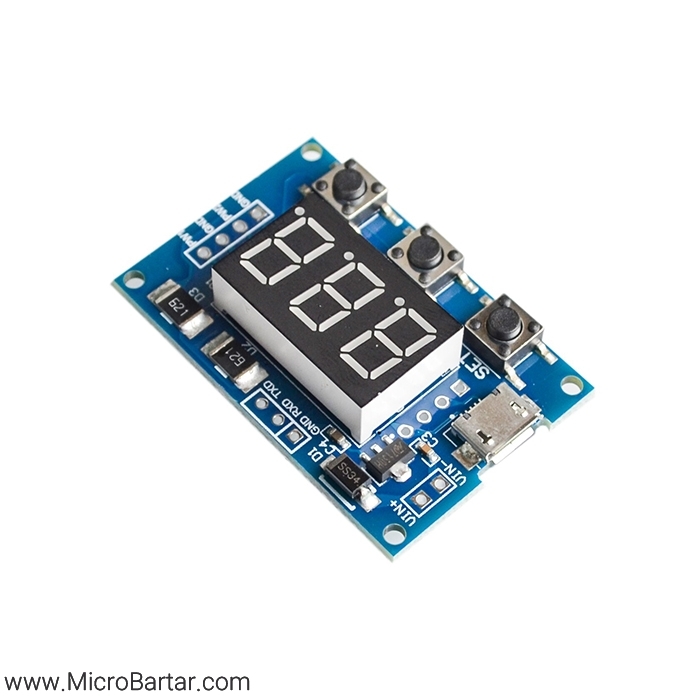

ماژول PWM ژنراتور دو کاناله

توضیحات محصول

2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module to generate square wave for experiment development.

This is used to drive stepping motor driver’s square wave, Generate adjustable pulse for MCU using, Generate adjustable pulse for controlling relative circuit (PWM adjust lightspeed etc).

Serial Port Control:

Communication Standard:9600 bps
Data Bit:8
Stop Bit:1
Verify Bit: none
Flow Control: none
Setting PWM Frequency:
“S1FXXXT”: set PWM1 frequency as XXX HZ (001~999)
“S1FXX.XT”: set PWM1 frequency as XX.X KHZ (00.1~99.9)
“S1F:X.X.X.T”: set PWM1 frequency as XXX KHZ (0.0.1.~1.5.0.)
“S1”: PWM1
“S2”: PWM2
“F”: frequency
“D”: duty cycle
“T”: stop sign bit
Setting PWM Duty Cycle:
“S1DXXXT”:set PWM1 duty cycle as XXX;(001~100)
“S2DXXXT”:set PWM2 duty cycle as XXX;(001~100)
Setting successfully back: DOWN

Setting unsuccessfully back: FALL

Parameter Setting:

The module has a 3-channel key: Set, Up, Down
By short press SET key,can shift display 4 parameter values (FR1:PWM1 frequency;dU1:PWM1 duty cycle;FR2:PWM2 frequency;dU2:PWM2 duty cycle);before shifting,there will be corresponding parameter name flashing
Directly press UP, DOWN key to modify the current parameter value
2-channel PWM is set 3 kinds frequency value, in frequency display interface, by long press SET to shift,3 kinds frequency’s duty cycle is the same (XXX:1Hz~999Hz; XX.X:0.1Khz~99.9Khz; X.X.X.:1Khz~150Khz).
Application Fields:
As square wave generator to generate square wave for experiment development
Used to drive steeping motor driver’s square wave
Generate adjustable pulse for MCU using
Generate adjustable pulse for controlling relative circuit (PWM adjust light speed etc)

Package Includes :

1 x 2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module.

Operating Voltage(VDC): 5 to 30
USB Type: Micro USB
Frequency Range: 1Hz to 150KHz
Frequency Precision: 2%
Operating Temperature (°C): -30 to 60
Signal Load Capacity: Output Current is within 8-30mA
Dimensions in mm (LxWxH): 44x30x11
Weight (gm): 8
Shipment Weight: 0.02 kg
