Simcom SIM900

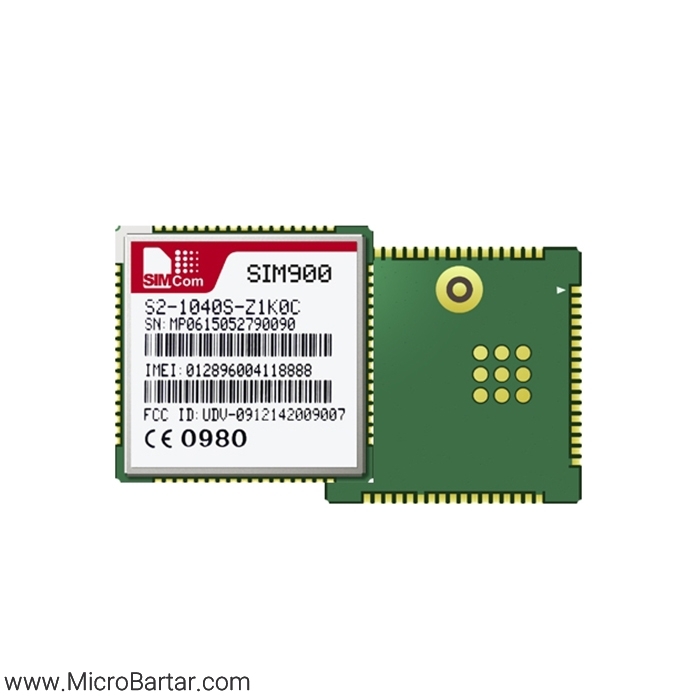

SIMCom presents an ultra compact and reliable wireless module-SIM900. This is a complete Quad-band GSM/GPRS module in a SMT type and designed with a very powerful single-chip processor integrating ARM926EJ-S core, allowing you to benefit from small dimensions and cost-effective solutions.
Featuring an industry-standard interface, the Module GSM/GPRS 850/900/1800/1900MHz performance for voice, SMS, Data, and Fax in a small form factor and with low power consumption. With a tiny configuration of 24mm x 24mm x 3 mm, it can fit almost all the space requirements in your M2M applications, especially for slim and compactdemands of design.

Interfaces

• Interface to external SIM 3V/ 1.8V
• Analog audio interface
• RTC backup
• SPI interface (option)
• Serial interface
• Antenna pad
• I2C
• GPIO
• PWM
• ADC

Specifications for SMS via GSM/GPRS

• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode

Compatibility

• AT cellular command interface
