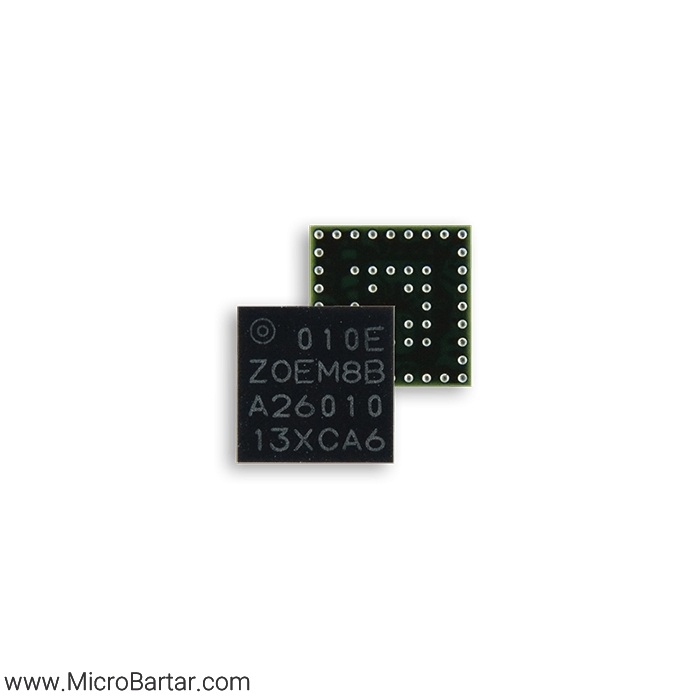

This GNSS SiP Module ublox ZOE-M8B opens up a new world of applications for manufacturers, because GNSS SiP Module ublox ZOE-M8B enables innovative battery powered devices that can provide very accurate and responsive GNSS positioning without harming user experience or performance. Some potential application areas include devices for fitness, health monitoring, and personal tracking.
GNSS features
GNSS: BeiDou, GLONASS, GPS / QZSS
Number of concurrent GNSS: 3
Concurrent GNSS: yes
Interfaces
UART: 1
SPI: 1
DDC (I²C compliant): 1
Electrical data
Minimum supply [V]: 1.71
Maximum supply [V]: 1.9
Environmental data, quality & reliability
Maximum temperature [°C]: 85
Minimum temperature [°C]: -40
Size [mm]: 4.5 x 4.5 x 1.0
Features
sip (system in package)
Additional LNA: yes
Additional SAW: yes
Data batching: yes
Data logging: yes
RTC crystal: yes
