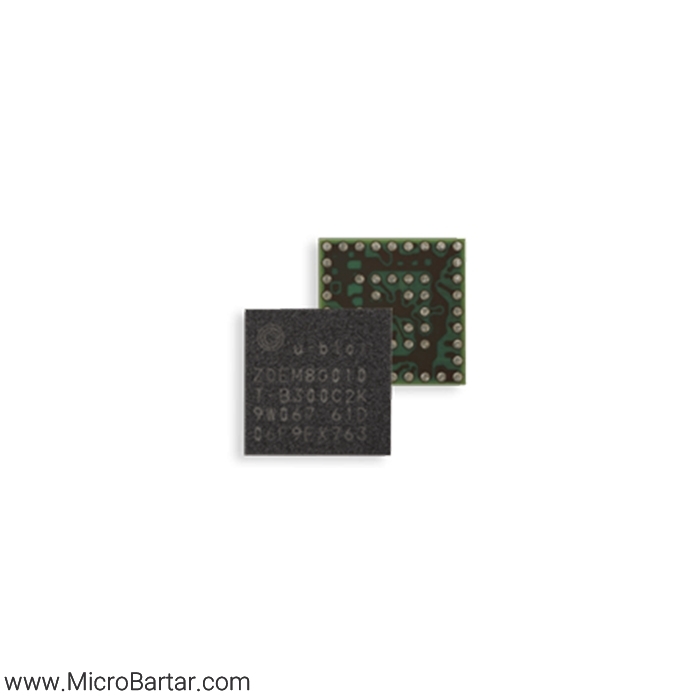

ZOE-M8G

This GNSS SiP Module ublox ZOE-M8G opens up a new world of applications for manufacturers, because GNSS SiP Module ublox ZOE-M8G enables innovative battery powered devices that can provide very accurate and responsive GNSS positioning without harming user experience or performance. Some potential application areas include devices for fitness, health monitoring, and personal tracking.

GNSS features

GNSS: BeiDou, GLONASS, GPS / QZSS
Number of concurrent GNSS: 3
Concurrent GNSS: yes

Interfaces

UART: 1
SPI: 1
DDC (I²C compliant): 1

Electrical data

Minimum supply [V]: 1.71
Maximum supply [V]: 1.9
Environmental data, quality & reliability
Maximum temperature [°C]: 85
Minimum temperature [°C]: -40
Size [mm]: 4.5 x 4.5 x 1.0

Features

sip (system in package)
Additional LNA: yes
Additional SAW: yes
Data logging: yes
Programmable flash memory: yes
RTC crystal: yes
Timepulse output: yes
