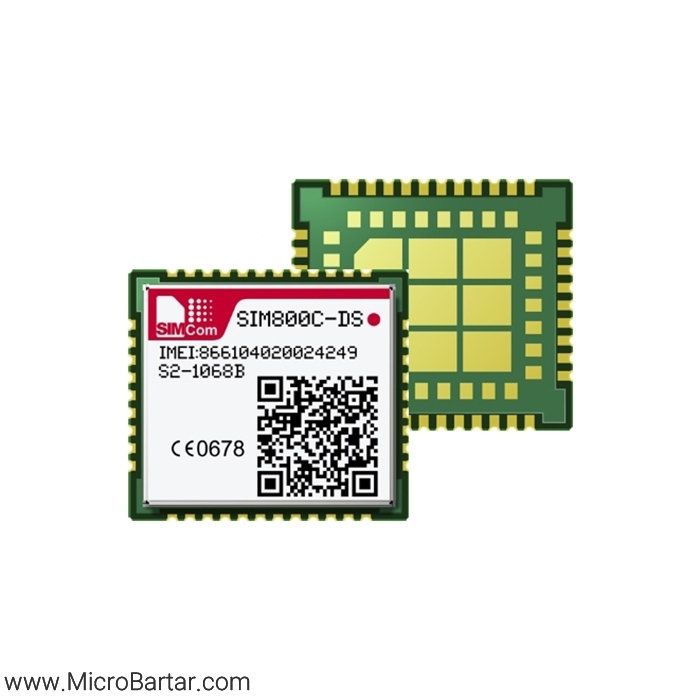

Simcom SIM800C-DS

SIM800C-DS is a complete Quad-band GSM/GPRS solution with LCC and LGA pads, support Dual-SIM, which allows customers to use two SIM cards in one device simultaneously. SIM800C-DS supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 17.6*15.7*2.3mm, it can smoothly fit into slim and compact demands of customer design.

Specifications for GPRS Data

(GPRS class 12: max. 85.6 kbps (downlink/uplink
PBCCH support
Coding schemes CS 1, 2, 3, 4
PPP-stack
USSD
Certifications
CE
ROHS
REACH

Specifications for SMS via GSM/GPRS

Point to point MO and MT
SMS cell broadcast
Text and PDU mode

Specifications for voice

Tricodec
(Half rate (HR
(Full rate (FR
(Enhanced Full rate (EFR
AMR
(Half rate (HR
(Full rate (FR
(Hands-free operation （Echo suppression
