Product Information

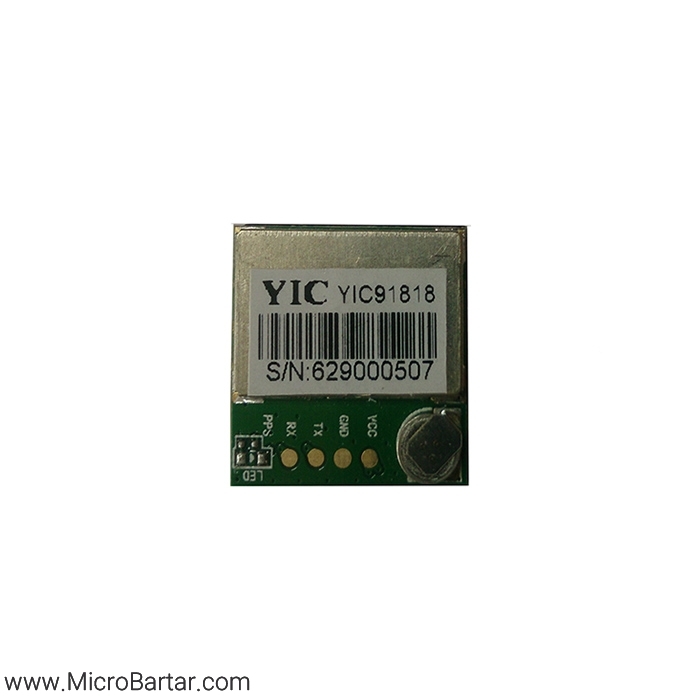

Product Name: YIC91818GM
Product Description
It is a complete standalone GPS/GNSS antenna module. It can simultaneously acquire and track multiple satellite constellations that include GPS, GALILEO, QZSS and SBAS. It features low power and small form factor.
Feature
. Build on high performance GPS single chip
. High Sensitivity -165 dBm
. Low power consumption: Max 30mA@3.3V
. Integrated LNA with low-gain mode for active antenna option
. 56 channels in Search mode and 22 channels “All-in-View” tracking
. Up to 60,000 simultaneous search windows for fast TTFF and high sensitivity acquisitions
. Average cold start time under 29seconds(open sky)
. Support standard NMEA-0183 and UBLOX protocol
. Patch Antenna Size:18.4 mm x 18.4 mm x 4 (H)mm
. RoHS compliant (Lead-free)
Product Application
. Handheld GPS receiver application
. Ideal for PDA, Pocket PC and other consumer devices requiring Positioning capability
. Geographic Surveying
. Sports and Recreation
. Marine Navigation, Fleet Management
. Automotive application
. Car navigation and tracking
. AVL and Location-Based Services
. Timing application
