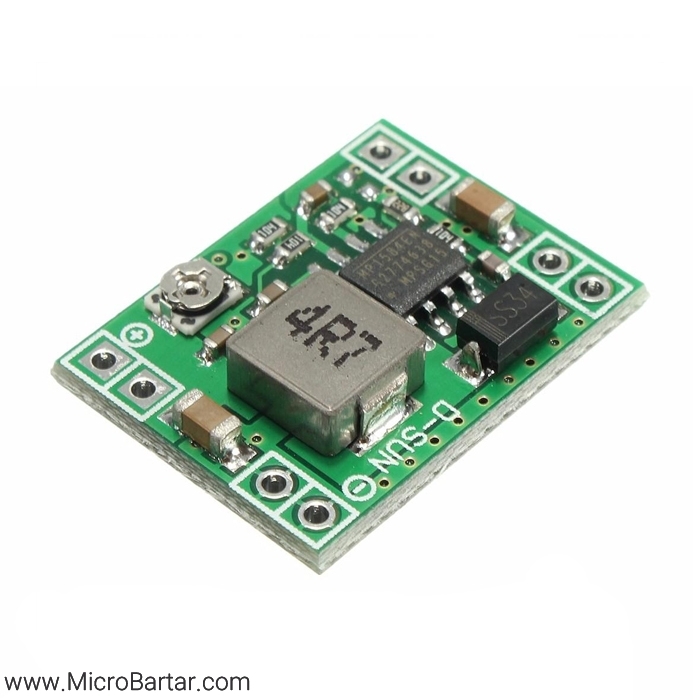

ماژول کاهنده DC-DC MP1584

توضیحات محصول

Specification

Input Voltage: 4.5V-28VDC
Output Voltage: 0.8V-18VDC
Continuous Output Current: Max. 3A
Perk Output Current: 4A
Max. Efficiency: 92%
Output Ripple: <30mV
Switching Frequency: 100kHz to 1.5MHz
Operating Temperature: -40℃ to +85℃
Dimensions: 22mm*17mm*4mm(l*w*h)

Feature

Wide 4.5V to 28V Operating Input Range
Up to 92% Efficiency
Programmable Switching Frequency from 100kHz to 1.5MHz
High-Efficiency Pulse Skipping Mode for Ceramic Capacitor Stable
Internally Set Current Limit without a Current Sensing Resistor
Cycle-by-Cycle Over Current Protection
Input Under Voltage Lockout

Note: Input must be >1.5V higher than output! The chip will jumper to high temperature protection mode when it work at a high-power conversion, without any cooling, it is able to output 3A current at 5V. But at higher output voltage, the current output capacity is lower than 3A, the minimum is 2A.
