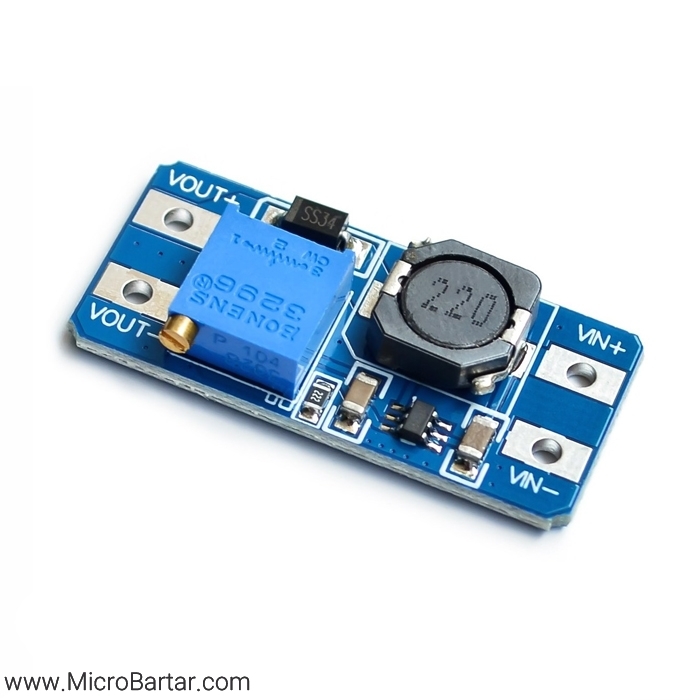

ماژول افزاینده MT3608

Product Description

Up to 2A current output, wide range input voltage from 2-24V, output 5/9/12/ – 28V, adjustable. This is better replacement for LM2577 Very price-effective, compact, and powerful item.

Features

Maximum output current: 2A
Input voltage: 2 v ~ 24 v
Maximum output voltage: 5V ~ 28 v
Efficiency:> 93%
Mechanical size: 36 mm * 17 mm * 14 mm
Instructions: Connection module + and – input voltage 2 ~ 24 v, then adjust the potentiometer you can adjust the output voltage, output voltage higher than the input voltage
Precautions
Input voltage should not exceed the maximum input voltage
Peak current output current does not exceed 2A
