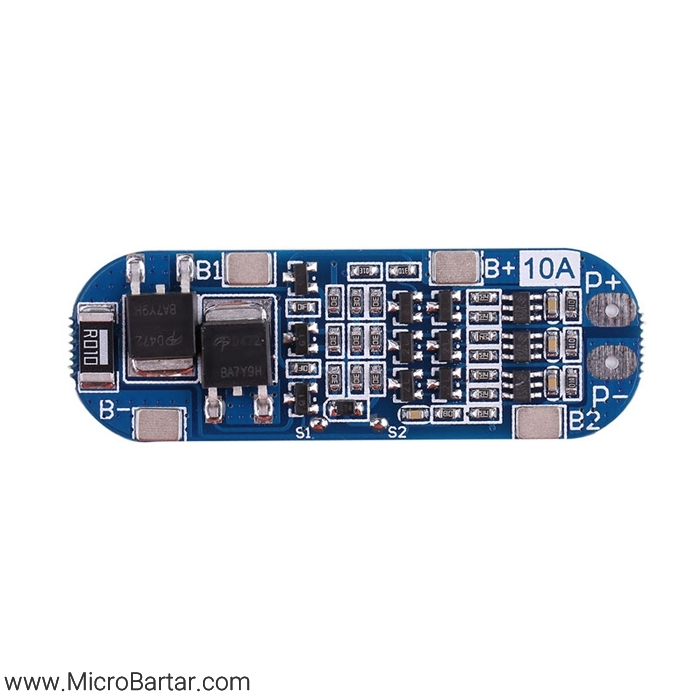

ماژول محافظ شارژ باتری لیتیومی 3 سل 10A

شناسه محصول: HX-3S-FL10A-A-Module دسته: برچسب: , , ,

تماس بگیرید

Features

Three series of lithium battery protection board
Automatically cancel protection after protection conditions restore
With function of overcharge protection, over discharge protection, short circuit protection, over-current protection
Suitable for lithium battery pack of 11.1V, 12V, 12.6V
Fine workmanship and durable
Quiescent current <30uA, so power consumption is small.

Specifications

Model: HX-3S-FL10-A
Dimension: 53 x 14 x 4 mm
Weight: 3.5 g
Over Voltage Range: 4.25-4.35V ±0.05V
Over Discharge Voltage Range: 2.3-3.0V ±0.05V
Maximum Operating Current: 6-8A
Maximum Transient Current: 10-13A
Quiescent Current: <30uA
Internal resistance: <100mΩ
Charging Voltage: 12.6 – 13V
Working Temperature: -40~+50℃
Storage Condition:  -40~ +80℃
Effective Life: > 30000 hours
Short circuit protection: Yes, delayed self recovery
