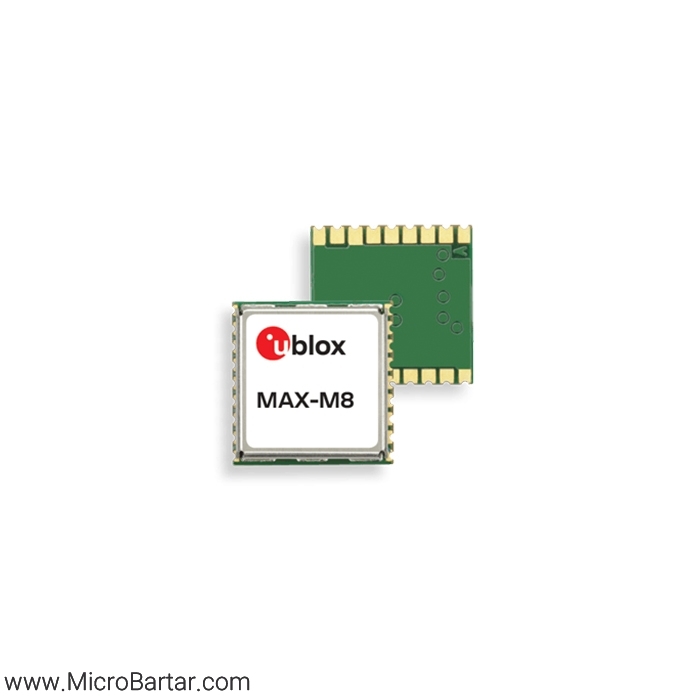

MAX-M8C

The MAX‑M8 series of standalone concurrent GNSS modules is built on the exceptional performance of the ublox M8 engine in the industry proven MAX form factor. The GNSS Module ublox MAX-M8C is optimized for cost sensitive applications and has the lowest power consumption.

GNSS features

GNSS: BeiDou, Galileo, GLONASS, GPS / QZSS
Number of concurrent GNSS: 3
Concurrent GNSS: yes
Oscillator: Crystal

Antenna

Pin (active) for external antenna: yes
Pin (passive) for external antenna: yes
Area
Global: yes

Interfaces

UART: 1
DDC (I²C compliant): 1

Electrical data

Minimum supply [V]: 1.65
Maximum supply [V]: 3.6

Environmental data, quality & reliability

Maximum temperature [°C]: 85
Minimum temperature [°C]: -40
Size [mm]: 9.7 x 10.1 x 2.5

Features

RTC crystal: yes
Timepulse output: yes
